Separators of fat
Flowing grease in drainpipes affects negatively the natural environment. Grease doesn’t dissolve in water, but it is in the form of the glutinous lumps -with difficulty undergoing the disintegration, settling on partition walls. It causes the unpleasant smell, the corrosion of devices, and blocking pipelines.
Grease separators offered by the producer, Wobet Hydret company, applies everywhere where sewers contain more fat than in welfare sewers. The devices are installed close the source of grease pollution e.g. on the exit of sewers of the kitchens, in restaurants, in hotels, in meat processing plants, in fast food bars.
In the process of separating grease substances from sewers, particles of grease ,on account of the density smaller than water, are on its surface. Other pollutants of the high density fall on the bottom of the container.

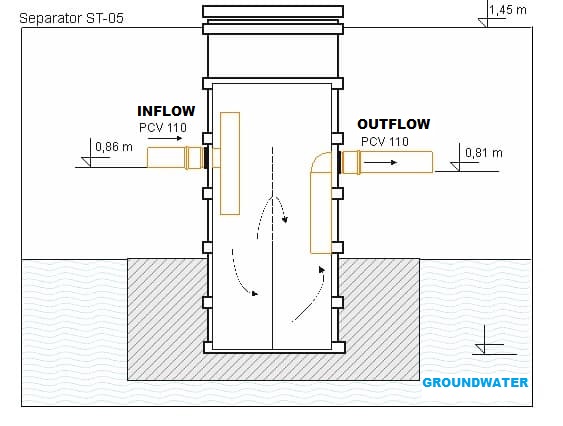

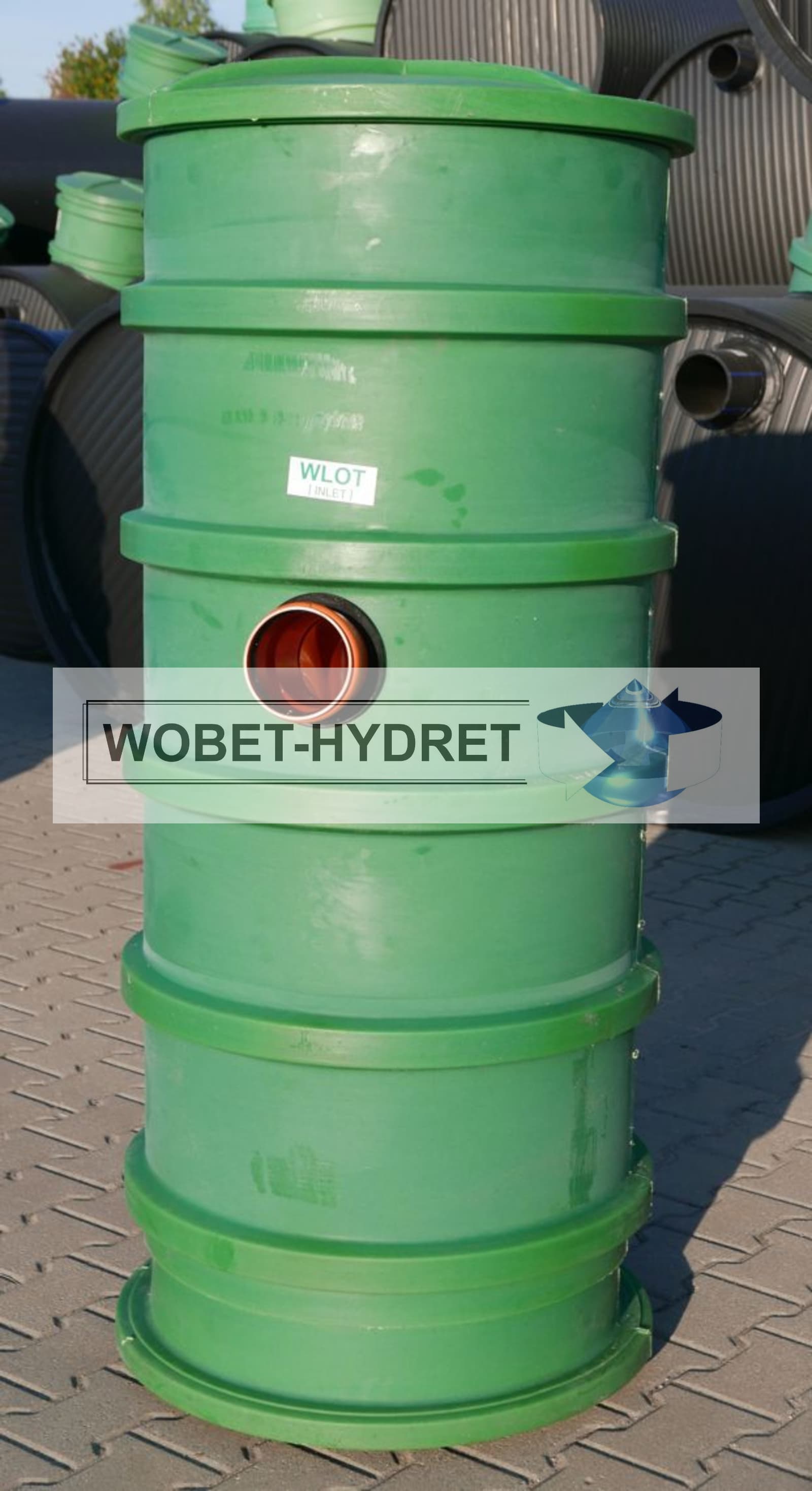

ST-05 Grease Separator
ST-05 Grease Separator is equipped with the settling tank and is devoted to the places of the cafeteria: bars etc
The compact structure of the separator enables its servicing and taking advantage of the the small size of the container placing.
| Type | Flow | Capacity of the settling tank | Connection | Diameter of the separator | Height of the separator |
| ST-05 | 0,5 l/sec | 100 of litres | 110 mm | 0,6 m | 1,45 m |

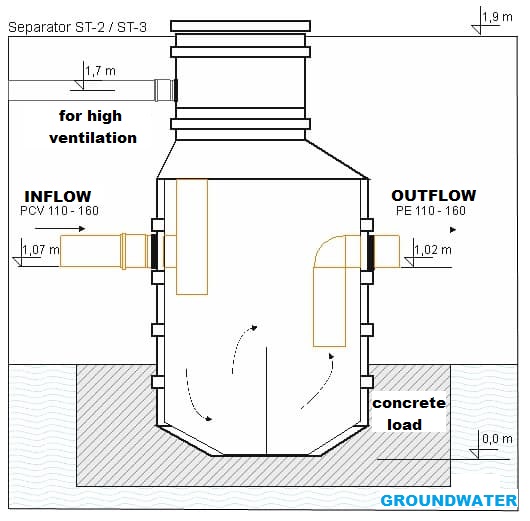

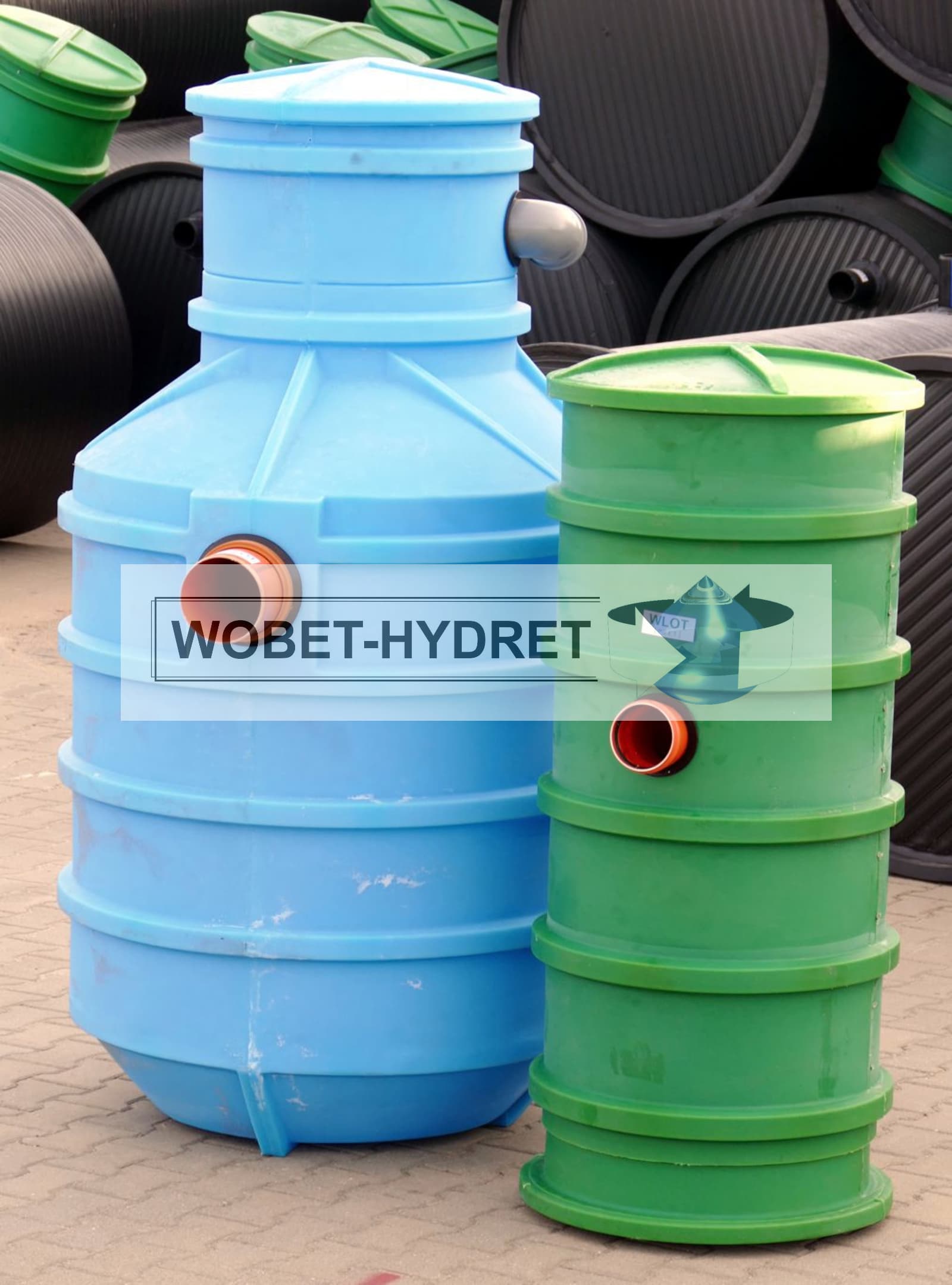

ST-2 and ST 3 GREASE SEPARATORS
Those separators are equipped with the settling tank and devoted to the catering facilities: bars, restaurants etc
The compact structure of the separator enables its servicing and taking advantage of the the small size of the container placing.
| Type | Flow | Capacity of the settling tank | Connection | Diameter of the separator | Height of the separator |
| ST-2 | 2 l/sec | 300 of litres | 160 mm | 1,0 m | 1,9 m |
| ST-3 | 3 l/sec | 400 of litres | 160 mm | 1,2 m | 1,8 m |

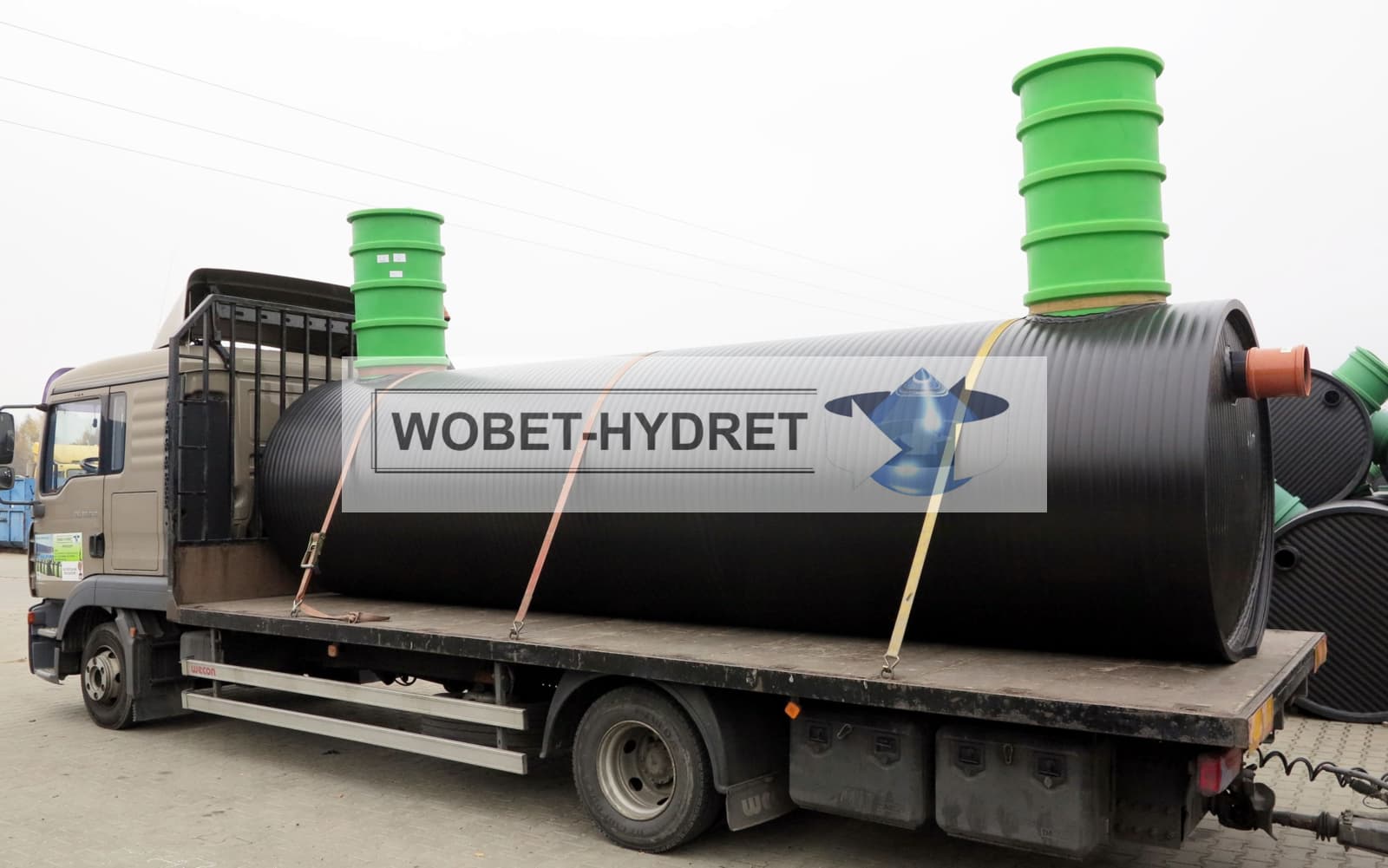

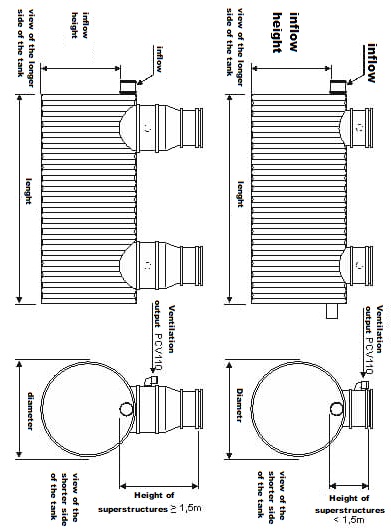

ST-4 and ST-5 GREASE SEPARATORS

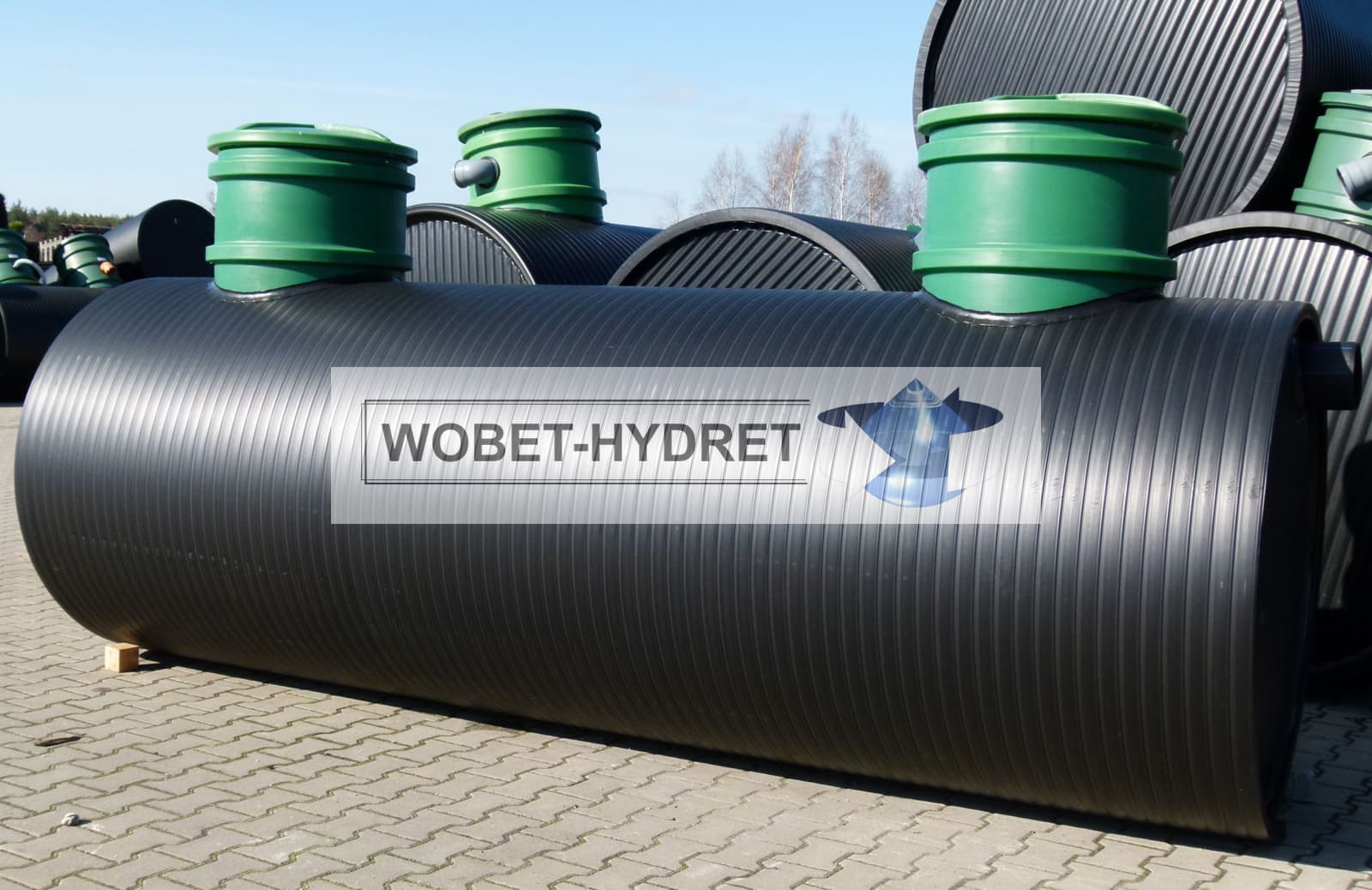

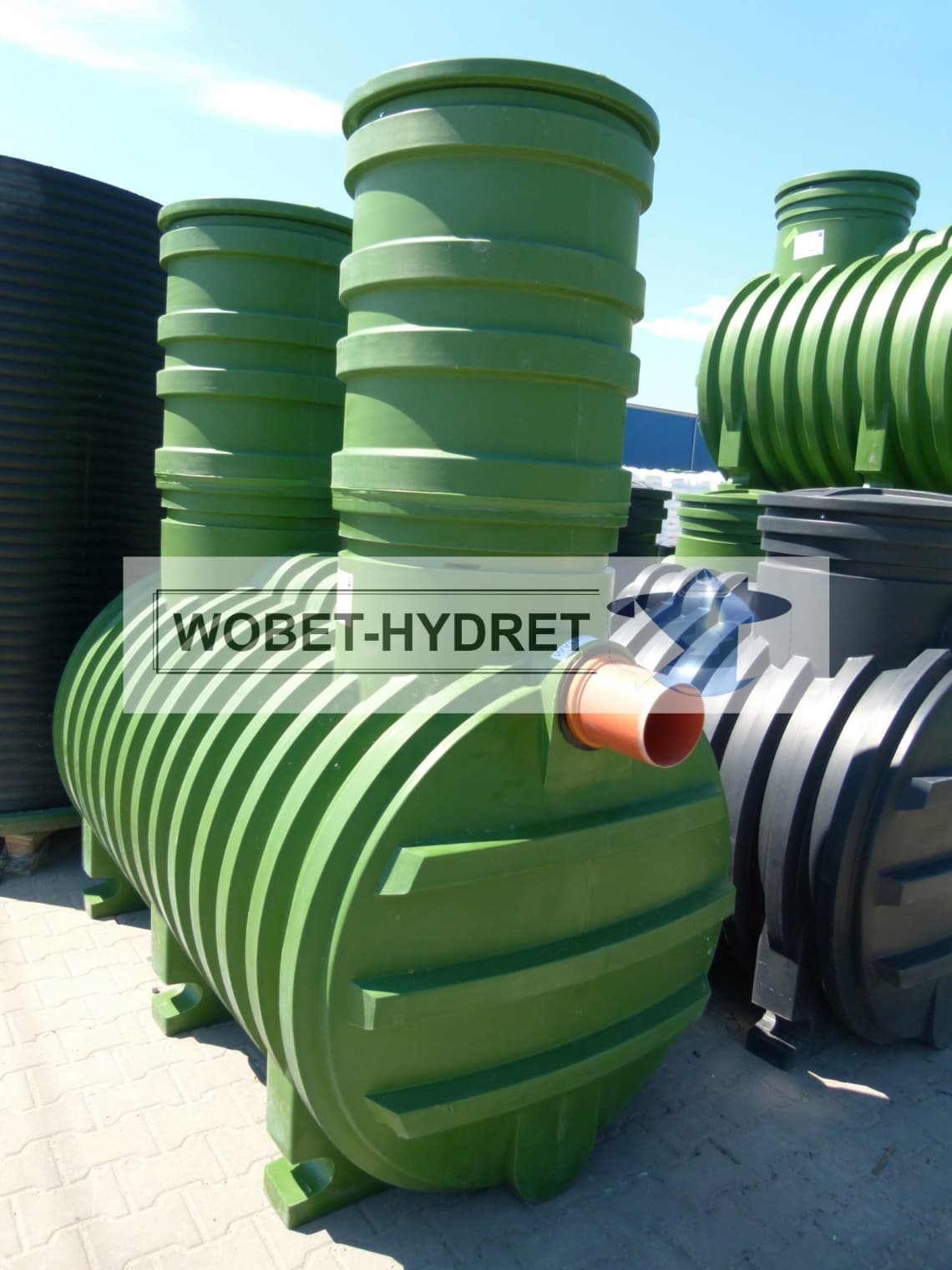

The grease separators of the horizontal structure, are equipped with the settling tank intended for the accumulation of the greater volume of pollutants than separators about the vertical construction. It is also associated with keeping the appropriate capacity of the device.
The separators from ST-4 -to ST-15 are the separators for pollutants of the great flow as well as for a big amount of the collected pollution . A wide range of its purposes includes objects of the following types: schools, hotels, meat processing plants, butcheries etc
The structure of separators and the possibility of increasing the diameter of revisory manholes enable the installation on large depths.
